WAAREE Radiance 5 kW On Grid Single Phase Bifacial Topcon DCR Solar Kit

No reviews yet
₹234,998.99
Save ₹35,000.00
MRP: ₹269,998.99
Inclusive of all taxes
Quote Pad Get a Bulk Quote
Lowest Price badge

Lowest Price

Superior Quality badge

Superior Quality

EMI badge

EMI

Offers & EMIs

Warranty Assurance badge

Warranty Assurance

Genuine Products badge

Genuine Products

Free Delivery badge

Free Delivery

Factory Direct Delivery badge

Factory-Direct Delivery

Certified Excellence badge

Certified Excellence

Earn WAAREE Points badge

Earn WAAREE Points

Warranty Information

Module Warranty:12 Years Product Warranty & 30 Years Power Output Warranty / Inverter Warranty: 8 Years

Product Features

The potential of renewable energy with the WAAREE Solar 5- 5.5kW On-Grid Solar System Topcon DCR (Single Phase). Ideal for both residential and commercial settings, this system offers a sustainable solution to power your property with clean solar energy. Featuring a robust design and high-quality components, this on-grid solar system ensures reliable performance and seamless integration with existing electrical infrastructure. With a capacity of 5 kW, it's capable of meeting the energy needs of households and small businesses alike.. This comprehensive kit makes setting up your solar power system a breeze. By harnessing the power of the sun, you can significantly reduce your electricity bills while minimizing your carbon footprint. Enjoy the benefits of renewable energy while contributing to a cleaner and more sustainable future for generations to come. Invest in the WAAREE Solar 5kW On-Grid Solar System for reliable, efficient, and environmentally friendly energy solutions for both residential and commercial applications.

Important Notes:

  • Subsidy eligibility is subject to assessment.
  • Waaree is solely responsible for the product itself.
  • Installation and maintenance will be carried out by the authorized installer only
  • Waaree will be not be responsible for installation.
  • Structure & Installation Charges Not Included

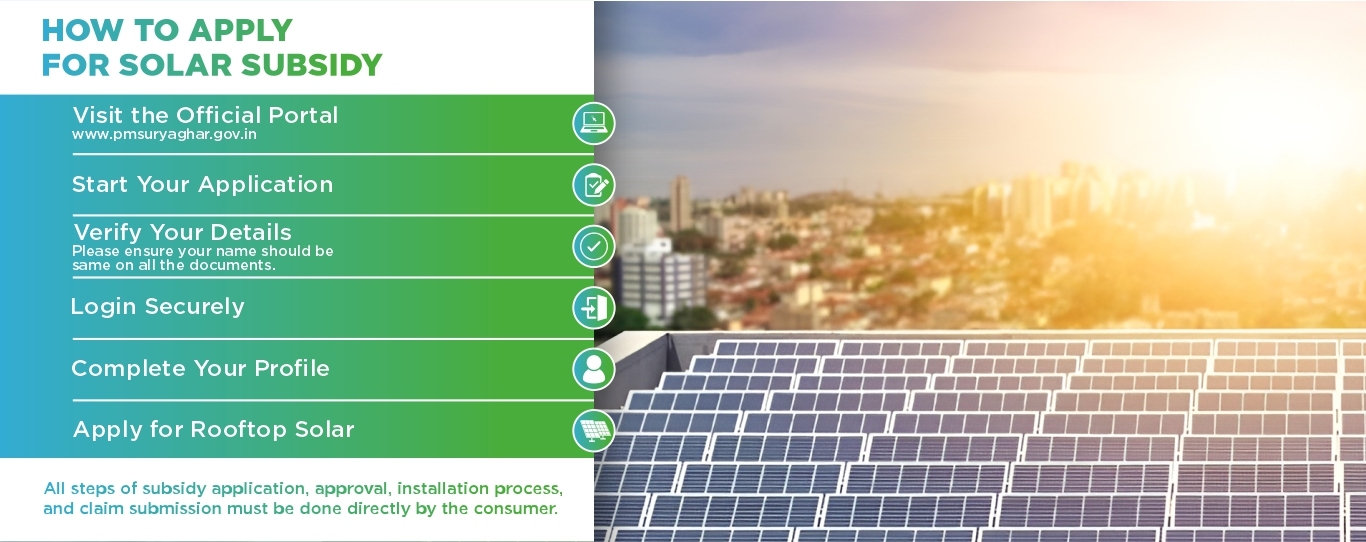

How to Claim Subsidy:

Step 1

Step 2

  • Login with Consumer Number & Mobile Number
  • Apply for the Rooftop Solar as per the form

Step 3

  • Once you get the feasibility approval, get the plant installed by any of the registered vendors in your DISCOM

Step 4

  • Once installation is completed , submit the plant details and apply for net meter

Step 5

  • Commissioning certificate will be generated from the portal, after installation of net meter and inspection by DISCOM

Step 6

  • Once you get the commissioning report. Submit the bank account details and a cancelled check through the portal. You will receive your subsidy in your bank account within 90 days.

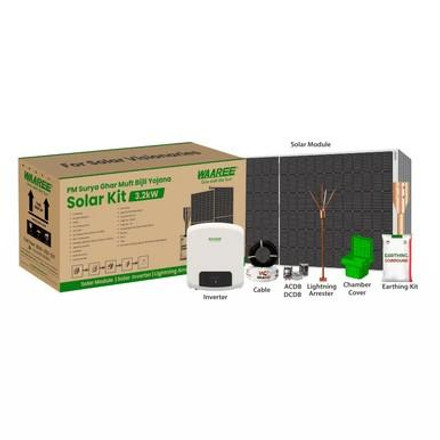

Sr. No. Component Specification Qty.
1 PV Module BiN-08-560/565/570 (DCR) 9
2 Inverter (On grid) WS On Grid 1 phase Inverter 5 KVA-Gen4 1
3 DCDB DCDB 8-12 KW (2 in 2 out) With SPD 1000V (Finder) & MCB 32 A 1
4 ACDB ACDB 1-6 KW with Indicator 1 Phase SPD 1+1 (Finder), 25/32A 2P AC MCB (Schneider) 1
5 DC Cable 1C, 4 Sqmm Cu. XLPO DC Cable - Red 60
6 DC Cable 1C, 4 Sqmm Cu. XLPO DC Cable - Black 60
7 AC Cables (From Inverter to ACDB) 2C, Cu. Flexible cable 4 Sqmm 20
8 MC-4 Connectors MC4 Compatible connectors (Pair) 4
9 Lighting Arrestor Conventional type LA 1.1m high LA HDG (minimum 80-micron) 1
10 Earthing kit (Earth Rod) Earthing Rod with 1.5m long Copper bonded electrode 14 mm dia (minimum 250-micron) 3
11 Earthing kit (Earth Chemical) 10kg Earthing chemical fill 1
12 Earthing kit (Earth Chamber) 350 mm dia FRP Earth pit chamber with cover 3
13 Earthing cables (For Module, DCDB, ACDB & Inverters) 1C, 6 Sqmm Cu. Flexible cable, Green (For Modules-to-Modules Earthing) 40
14 Lug 6 Sqmm Cu. Ring type lug 28
15 Nutbolts for M-M SS 304 Bolt nut for mod-mod M4x20 (B+N+2PL+1 Serrated Washer) 30
16 Cable Tie - Nylon UV protected Cable Ties-250mm, UL Listed UV Resistant Nylon Cable Ties 1
17 Cable Tie - SS UV protected Cable Ties-300mm, SS Cable Ties - Fire Proof, UV Resistant and Halogen Free Cable ties, SS304, Self Locking, highly chemical and corrosion resistant. 1
18 PU foam bottle 450ml PU foam bottle 450ml 1
19 Insulation Tape Insulation Tape for 1 phase (Red-1, Black-1, Green-1) 1
20 DC Cable Dressing Clips (SS 316 without sharp edges) DC Cable Dressing Clips (SS 316 without sharp edges) 10

Warranty Information

  • Module Warranty:12 Years Product Warranty & 30 Years Power Output Warranty
  • Inverter Warranty:8 Years Warranty

Downloads

Download the Product datasheet and user manual here:

5 - 5.5 Kw On Grid Single Phase Bifacial DCR Solar System

WAAREE Radiance 5 kW On Grid Single Phase Bifacial Topcon DCR Solar Kit

The potential of renewable energy with the WAAREE Solar 5- 5.5kW On-Grid Solar System Topcon DCR (Single Phase). Ideal for both residential and commercial settings, this system offers a sustainable solution to power your property with clean solar energy. Featuring a robust design and high-quality components, this on-grid solar system ensures reliable performance and seamless integration with existing electrical infrastructure. With a capacity of 5 kW, it's capable of meeting the energy needs of households and small businesses alike.. This comprehensive kit makes setting up your solar power system a breeze. By harnessing the power of the sun, you can significantly reduce your electricity bills while minimizing your carbon footprint. Enjoy the benefits of renewable energy while contributing to a cleaner and more sustainable future for generations to come. Invest in the WAAREE Solar 5kW On-Grid Solar System for reliable, efficient, and environmentally friendly energy solutions for both residential and commercial applications.

Important Notes:

  • Subsidy eligibility is subject to assessment.
  • Waaree is solely responsible for the product itself.
  • Installation and maintenance will be carried out by the authorized installer only
  • Waaree will be not be responsible for installation.
  • Structure & Installation Charges Not Included



How to Claim Subsidy:

Step 1

Step 2

  • Login with Consumer Number & Mobile Number
  • Apply for the Rooftop Solar as per the form

Step 3

  • Once you get the feasibility approval, get the plant installed by any of the registered vendors in your DISCOM

Step 4

  • Once installation is completed , submit the plant details and apply for net meter

Step 5

  • Commissioning certificate will be generated from the portal, after installation of net meter and inspection by DISCOM

Step 6

  • Once you get the commissioning report. Submit the bank account details and a cancelled check through the portal. You will receive your subsidy in your bank account within 90 days.
Sr. No. Component Specification Qty.
1 PV Module BiN-08-560/565/570 (DCR) 9
2 Inverter (On grid) WS On Grid 1 phase Inverter 5 KVA-Gen4 1
3 DCDB DCDB 8-12 KW (2 in 2 out) With SPD 1000V (Finder) & MCB 32 A 1
4 ACDB ACDB 1-6 KW with Indicator 1 Phase SPD 1+1 (Finder), 25/32A 2P AC MCB (Schneider) 1
5 DC Cable 1C, 4 Sqmm Cu. XLPO DC Cable - Red 60
6 DC Cable 1C, 4 Sqmm Cu. XLPO DC Cable - Black 60
7 AC Cables (From Inverter to ACDB) 2C, Cu. Flexible cable 4 Sqmm 20
8 MC-4 Connectors MC4 Compatible connectors (Pair) 4
9 Lighting Arrestor Conventional type LA 1.1m high LA HDG (minimum 80-micron) 1
10 Earthing kit (Earth Rod) Earthing Rod with 1.5m long Copper bonded electrode 14 mm dia (minimum 250-micron) 3
11 Earthing kit (Earth Chemical) 10kg Earthing chemical fill 1
12 Earthing kit (Earth Chamber) 350 mm dia FRP Earth pit chamber with cover 3
13 Earthing cables (For Module, DCDB, ACDB & Inverters) 1C, 6 Sqmm Cu. Flexible cable, Green (For Modules-to-Modules Earthing) 40
14 Lug 6 Sqmm Cu. Ring type lug 28
15 Nutbolts for M-M SS 304 Bolt nut for mod-mod M4x20 (B+N+2PL+1 Serrated Washer) 30
16 Cable Tie - Nylon UV protected Cable Ties-250mm, UL Listed UV Resistant Nylon Cable Ties 1
17 Cable Tie - SS UV protected Cable Ties-300mm, SS Cable Ties - Fire Proof, UV Resistant and Halogen Free Cable ties, SS304, Self Locking, highly chemical and corrosion resistant. 1
18 PU foam bottle 450ml PU foam bottle 450ml 1
19 Insulation Tape Insulation Tape for 1 phase (Red-1, Black-1, Green-1) 1
20 DC Cable Dressing Clips (SS 316 without sharp edges) DC Cable Dressing Clips (SS 316 without sharp edges) 10

Warranty Information

  • Module Warranty:12 Years Product Warranty & 30 Years Power Output Warranty
  • Inverter Warranty:8 Years Warranty

Downloads

Download the Product datasheet and user manual here:

  • SKU: 5KW_BOS_DCR_TOPCON
  • Availability: Product Will Dispatch In 4 Weeks
  • Weight: 300.00 KGS
  • Shipping: Free Shipping
  • T&C: Non Returnable
  • Note: Structure & Installation Charges Not Included
  • Type: Ready To Install Solar Kit
  • Manufacturer: WAAREE Energies Ltd, New Survey no. 1928 Village Degam, Taluka, Chikhli, Gujarat 396530
  • Packer: WAAREE Energies Ltd, New Survey no. 1928 Village Degam, Taluka, Chikhli, Gujarat 396530
  • Importer: WAAREE Energies Ltd, New Survey no. 1928 Village Degam, Taluka, Chikhli, Gujarat 396530
  • Type: Ready To Install Kit
  • Scheme: PM SURYA GHAR MUFT BIJALI YOJANA
  • Subsidy: Eligible for Government Subsidies
