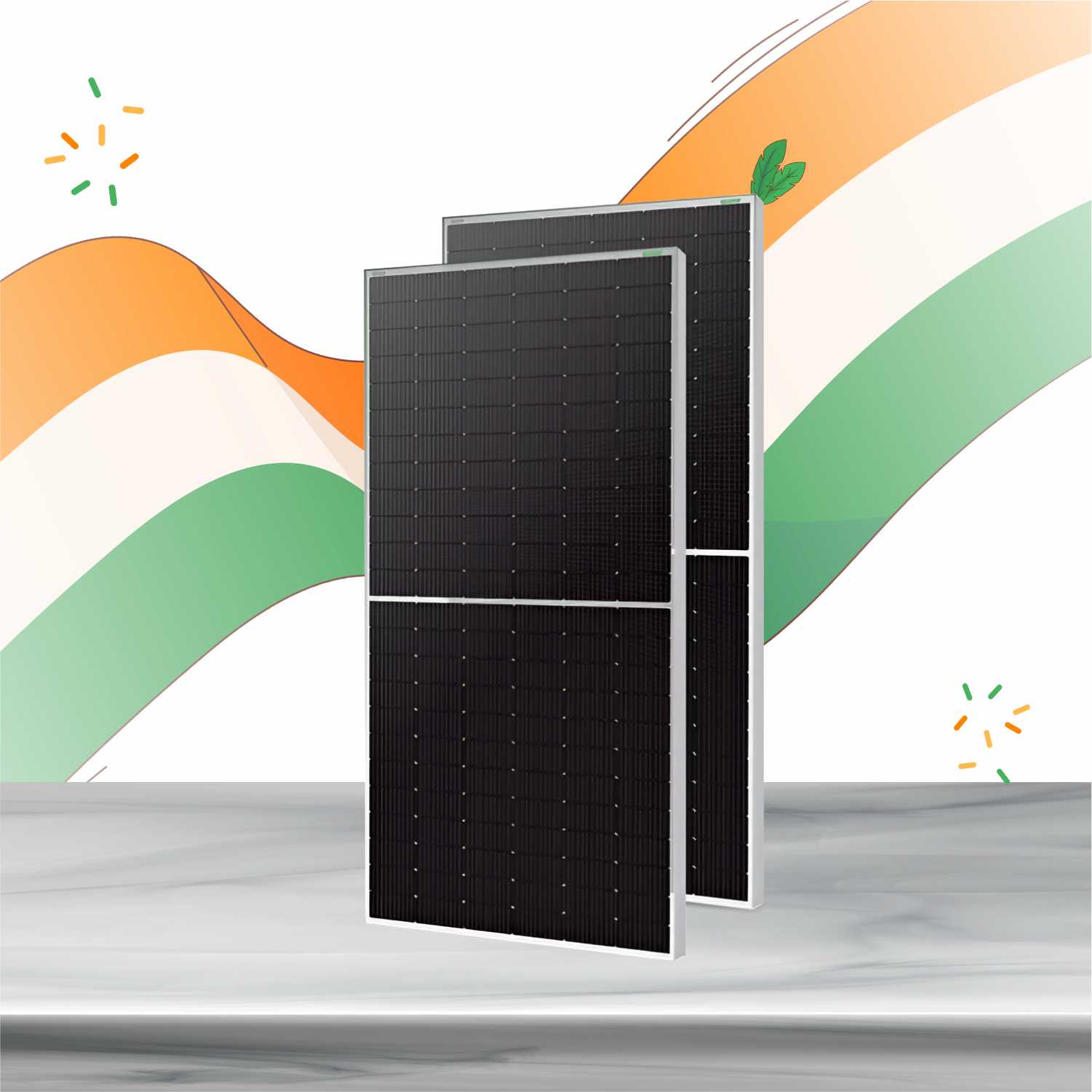

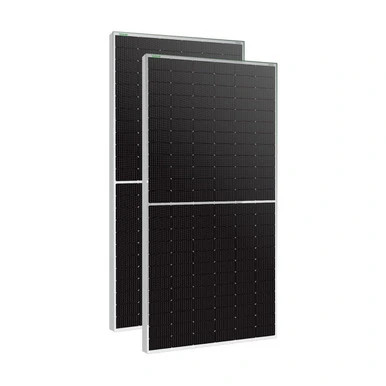

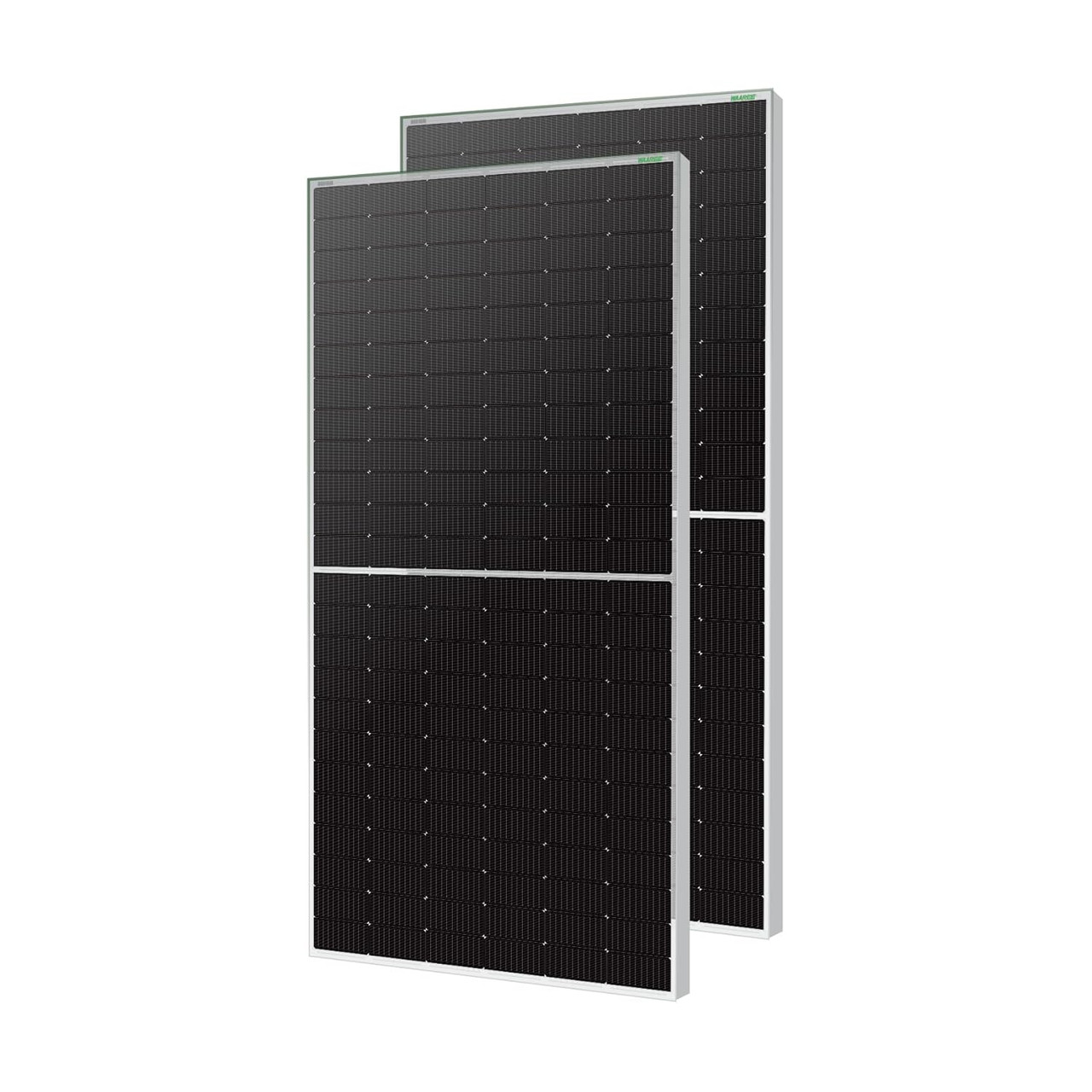

WAAREE 585Wp 144Cells 24 Volts N-Type Framed Dual Glass Bifacial Non-DCR Solar Module

No reviews yet
₹13,099.00
Save ₹4,900.00
Price dropped by ₹600
MRP: ₹17,999.00
Inclusive of all taxes
Quote Pad Get a Bulk Quote
Lowest Price badge

Lowest Price

Superior Quality badge

Superior Quality

EMI badge

EMI

Offers & EMIs

Warranty Assurance badge

Warranty Assurance

Genuine Products badge

Genuine Products

Free Delivery badge

Free Delivery

Factory Direct Delivery badge

Factory-Direct Delivery

Certified Excellence badge

Certified Excellence

Earn WAAREE Points badge

Earn WAAREE Points

Product Features

WAAREE 550 Wp 144 Cells Framed Dual Glass Mono PERC Bifacial Solar Module
WAAREE 550 Wp 144 Cells Framed Dual Glass Mono PERC Bifacial Solar Module
Product Feature Illustration 1
Product Feature Illustration 2
Product Feature Illustration 2
Product Feature Illustration 2
Product Feature Illustration 2

Technical Specifications

  • Length x Width x Thickness (L x W x T): 2279 mm (L) x 1134 mm (W) x 35 mm (T)
  • Solar Cells per Module (Units)/Arrangements: 144 cells / (12x6 || 12x6)
  • Weight: 32 ± 1 kgs
  • Solar Cell Type & Size: TOPCon N-type Mono Bifacial,91x182mm /   N-DCR
  • Front / Back Glass (Material / Thickness): 2 mm Low Iron ARC semi-tempered glass
  • Encapsulate: PID Free & UV Resistant
  • Junction Box (Protection degree/Material): IP68 / Weatherproof PPO
  • Cable & Connector (Protection degree/Type): IP68 rated / MC4 compatible
  • Cable Cross - Section & Length: 4mm& 500mm
  • Frame: Anodized Aluminium Alloy

Warranty Information

12 Years Product Warranty & 30 Years Power Output Warranty.

Downloads

Download the Product datasheet here:

WAAREE 585Wp 144Cells 24 Volts N-Type Framed Dual Glass Bifacial Non-DCR Solar Module

WAAREE 585Wp 144Cells 24 Volts N-Type Framed Dual Glass Bifacial Non-DCR Solar Module

WAAREE 550 Wp 144 Cells Framed Dual Glass Mono PERC Bifacial Solar Module
WAAREE 550 Wp 144 Cells Framed Dual Glass Mono PERC Bifacial Solar Module
Product Feature Illustration 1
Product Feature Illustration 2
Product Feature Illustration 2
Product Feature Illustration 2
Product Feature Illustration 2

Technical Specifications

  • Length x Width x Thickness (L x W x T): 2279 mm (L) x 1134 mm (W) x 35 mm (T)
  • Solar Cells per Module (Units)/Arrangements: 144 cells / (12x6 || 12x6)
  • Weight: 32 ± 1 kgs
  • Solar Cell Type & Size: TOPCon N-type Mono Bifacial,91x182mm /   N-DCR
  • Front / Back Glass (Material / Thickness): 2 mm Low Iron ARC semi-tempered glass
  • Encapsulate: PID Free & UV Resistant
  • Junction Box (Protection degree/Material): IP68 / Weatherproof PPO
  • Cable & Connector (Protection degree/Type): IP68 rated / MC4 compatible
  • Cable Cross - Section & Length: 4mm& 500mm
  • Frame: Anodized Aluminium Alloy

Warranty Information

12 Years Product Warranty & 30 Years Power Output Warranty.

Downloads

Download the Product datasheet here:

  • SKU: BiN-08-585 Pack Of 1
  • Weight: 32.00 KGS
  • Width: 113.40 (cm)
  • Height: 227.90 (cm)
  • Depth: 3.50 (cm)
  • Minimum Purchase: 1 unit
  • Shipping: Calculated at Checkout
  • Replacement Policy: 7 Day Replacement Policy On Breakage Case Only
  • Manufacturer: WAAREE Energies Ltd, New Survey no. 1928 Village Degam, Taluka, Chikhli, Gujarat 396530
  • Packer: WAAREE Energies Ltd, New Survey no. 1928 Village Degam, Taluka, Chikhli, Gujarat 396530
  • Importer: WAAREE Energies Ltd, New Survey no. 1928 Village Degam, Taluka, Chikhli, Gujarat 396530
