waaree

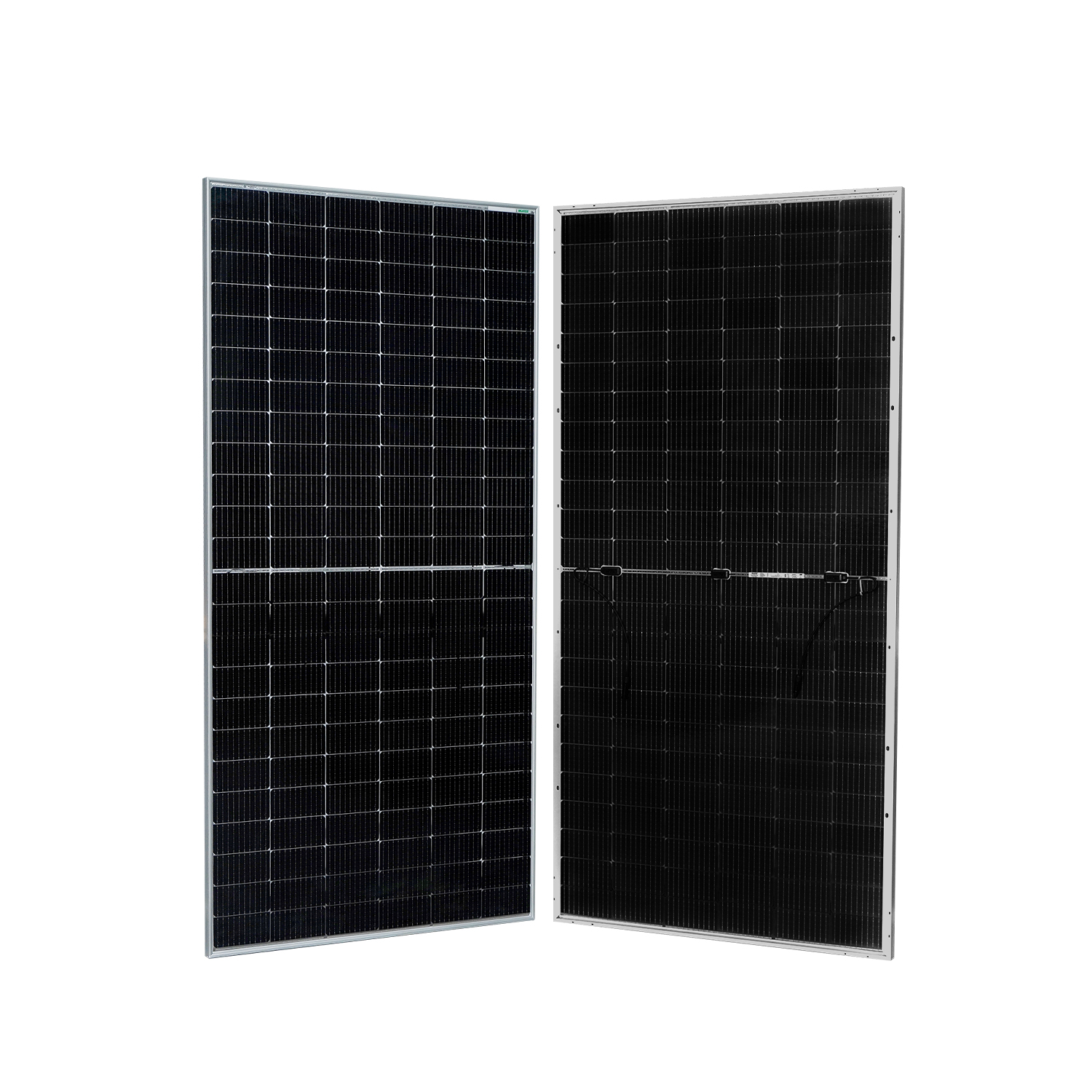

Waaree 535W DCR Mono Solar Panel | M10 10BB Glass to White Backsheet Module | Premium Solar Module

₹14,799.00
Save ₹3,912.00
Price dropped by ₹500
MRP: ₹18,711.00
Inclusive of all taxes
Quote Pad Get a Bulk Quote
Lowest Price badge

Lowest Price

Superior Quality badge

Superior Quality

EMI badge

EMI

Offers & EMIs

Warranty Assurance badge

Warranty Assurance

Genuine Products badge

Genuine Products

Free Delivery badge

Free Delivery

Factory Direct Delivery badge

Factory-Direct Delivery

Certified Excellence badge

Certified Excellence

Earn WAAREE Points badge

Earn WAAREE Points

Warranty Information

12 Years Product Warranty & 27 Years Power Output Warranty

Product Features



WAAREE 540Wp 144 Cells Mono PERC Solar Module

WAAREE 540Wp 144 Cells Mono PERC Solar Module

Product Features:

    Highest Reliability & Enhanced Crack tolerant MBB Module     Module Utilizing Half Cut cell for Optimum Performance

    Highly Efficient Mono PERC cells

    Highest Commercial Gains, lower LCOE


    Split Junction Box improves Heat Dissipation     Increase Shade Tolerance

    Best-in-Class Thermal Co-efficients



Mechanical Characteristrics:

Solar Cells per Module (Units)/Arrangements   144 cells / (12x6 || 12x6)
Solar Cell Type    Mono PERC, DCR
Front Glass   3.2mm Low Iron Glass & Tempered Glass with ARC Coating
Encapsulate   PID Free & UV Resistant
Junction Box (Protection degree/Material)   IP68 / Weatherproof PPO
Cable & Connector (Protection degree/Type)   IP68 rated / MC4 compatible
Cable Cross - Section & Length   4mm& 500mm
Frame   Anodized Aluminium Alloy



12 Years Product Warranty & 27 Years Power Output Warranty.

Download the Data Sheet

Download the User Mannual

WAAREE 535Wp 144 Cells DCR 24 Volts Mono PERC DCR Solar Module

Waaree 535W DCR Mono Solar Panel | M10 10BB Glass to White Backsheet Module | Premium Solar Module



WAAREE 540Wp 144 Cells Mono PERC Solar Module

WAAREE 540Wp 144 Cells Mono PERC Solar Module

Product Features:

    Highest Reliability & Enhanced Crack tolerant MBB Module     Module Utilizing Half Cut cell for Optimum Performance

    Highly Efficient Mono PERC cells

    Highest Commercial Gains, lower LCOE


    Split Junction Box improves Heat Dissipation     Increase Shade Tolerance

    Best-in-Class Thermal Co-efficients



Mechanical Characteristrics:

Solar Cells per Module (Units)/Arrangements   144 cells / (12x6 || 12x6)
Solar Cell Type    Mono PERC, DCR
Front Glass   3.2mm Low Iron Glass & Tempered Glass with ARC Coating
Encapsulate   PID Free & UV Resistant
Junction Box (Protection degree/Material)   IP68 / Weatherproof PPO
Cable & Connector (Protection degree/Type)   IP68 rated / MC4 compatible
Cable Cross - Section & Length   4mm& 500mm
Frame   Anodized Aluminium Alloy



12 Years Product Warranty & 27 Years Power Output Warranty.

Download the Data Sheet

Download the User Mannual

  • SKU: WSMD-535-DCR Pack Of 1
  • Availability: Product Will Dispatch In 24 HOURS
  • Weight: 27.50 KGS
  • Width: 113.30 (cm)
  • Height: 227.20 (cm)
  • Depth: 3.50 (cm)
  • Minimum Purchase: 1 unit
  • Shipping: Calculated at Checkout
  • Replacement Policy: 7 Day Replacement Policy On Breakage Case Only
  • T&C: Non Returnable
  • Manufacturer: WAAREE Energies Ltd, New Survey no. 1928 Village Degam, Taluka, Chikhli, Gujarat 396530
  • Packer: WAAREE Energies Ltd, New Survey no. 1928 Village Degam, Taluka, Chikhli, Gujarat 396530
  • Importer: WAAREE Energies Ltd, New Survey no. 1928 Village Degam, Taluka, Chikhli, Gujarat 396530


WAAREE 540Wp 144 Cells Mono PERC Solar Module

WAAREE 540Wp 144 Cells Mono PERC Solar Module

Product Features:

    Highest Reliability & Enhanced Crack tolerant MBB Module     Module Utilizing Half Cut cell for Optimum Performance

    Highly Efficient Mono PERC cells

    Highest Commercial Gains, lower LCOE


    Split Junction Box improves Heat Dissipation     Increase Shade Tolerance

    Best-in-Class Thermal Co-efficients



Mechanical Characteristrics:

Solar Cells per Module (Units)/Arrangements   144 cells / (12x6 || 12x6)
Solar Cell Type    Mono PERC, DCR
Front Glass   3.2mm Low Iron Glass & Tempered Glass with ARC Coating
Encapsulate   PID Free & UV Resistant
Junction Box (Protection degree/Material)   IP68 / Weatherproof PPO
Cable & Connector (Protection degree/Type)   IP68 rated / MC4 compatible
Cable Cross - Section & Length   4mm& 500mm
Frame   Anodized Aluminium Alloy



12 Years Product Warranty & 27 Years Power Output Warranty.

Download the Data Sheet

Download the User Mannual



WAAREE 540Wp 144 Cells Mono PERC Solar Module

WAAREE 540Wp 144 Cells Mono PERC Solar Module

Product Features:

    Highest Reliability & Enhanced Crack tolerant MBB Module     Module Utilizing Half Cut cell for Optimum Performance

    Highly Efficient Mono PERC cells

    Highest Commercial Gains, lower LCOE


    Split Junction Box improves Heat Dissipation     Increase Shade Tolerance

    Best-in-Class Thermal Co-efficients



Mechanical Characteristrics:

Solar Cells per Module (Units)/Arrangements   144 cells / (12x6 || 12x6)
Solar Cell Type    Mono PERC, DCR
Front Glass   3.2mm Low Iron Glass & Tempered Glass with ARC Coating
Encapsulate   PID Free & UV Resistant
Junction Box (Protection degree/Material)   IP68 / Weatherproof PPO
Cable & Connector (Protection degree/Type)   IP68 rated / MC4 compatible
Cable Cross - Section & Length   4mm& 500mm
Frame   Anodized Aluminium Alloy



12 Years Product Warranty & 27 Years Power Output Warranty.

Download the Data Sheet

Download the User Mannual

12 Years Product Warranty & 27 Years Power Output Warranty



WAAREE 540Wp 144 Cells Mono PERC Solar Module

WAAREE 540Wp 144 Cells Mono PERC Solar Module

Product Features:

    Highest Reliability & Enhanced Crack tolerant MBB Module     Module Utilizing Half Cut cell for Optimum Performance

    Highly Efficient Mono PERC cells

    Highest Commercial Gains, lower LCOE


    Split Junction Box improves Heat Dissipation     Increase Shade Tolerance

    Best-in-Class Thermal Co-efficients



Mechanical Characteristrics:

Solar Cells per Module (Units)/Arrangements   144 cells / (12x6 || 12x6)
Solar Cell Type    Mono PERC, DCR
Front Glass   3.2mm Low Iron Glass & Tempered Glass with ARC Coating
Encapsulate   PID Free & UV Resistant
Junction Box (Protection degree/Material)   IP68 / Weatherproof PPO
Cable & Connector (Protection degree/Type)   IP68 rated / MC4 compatible
Cable Cross - Section & Length   4mm& 500mm
Frame   Anodized Aluminium Alloy



12 Years Product Warranty & 27 Years Power Output Warranty.

Download the Data Sheet

Download the User Mannual

Write a Review
  • 2nd Feb 2026
    worthwhile choice.....

    strong performance and power generation

  • 2nd Feb 2026
    Heavy Duty

    Very dependable panels.

  • 2nd Feb 2026
    Perfect Performance

    The panel quality and finish are excellent.

  • 2nd Feb 2026
    535 watt worth it panel

    Panel itself is good and generates expected power

  • 30th Jan 2026
    Foggy weather performance

    Foggy weather performance ,surprised by the low-light performance in Punjab winters. Still getting enough juice to keep my batteries charged during foggy days.

  • 8th Nov 2025
    Working well

    panel gives excellent output even during early mornings and late evenings

  • 4th Oct 2025
    Good Product (After 5 months use)

    panel is Best quality good Excellent product. Highly recommendable

  • 3rd Oct 2025
    The build quality is solid,

    According to my experience this panel standout features is the incredible output. The performance is simply crazy!
