Product Overview

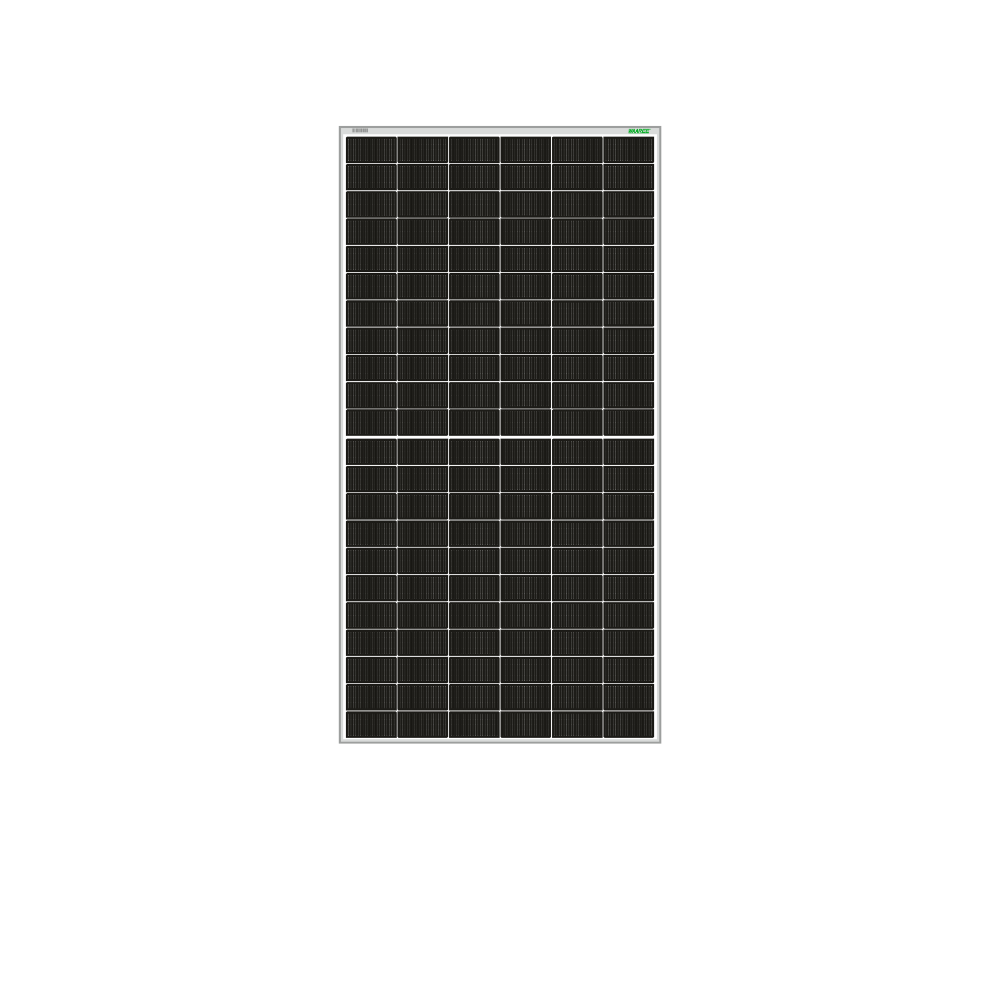

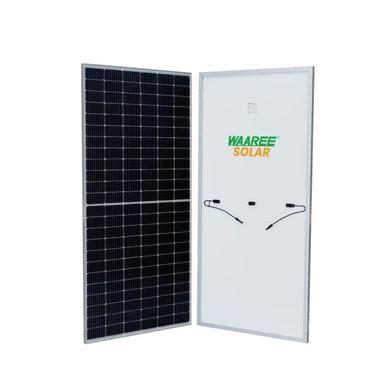

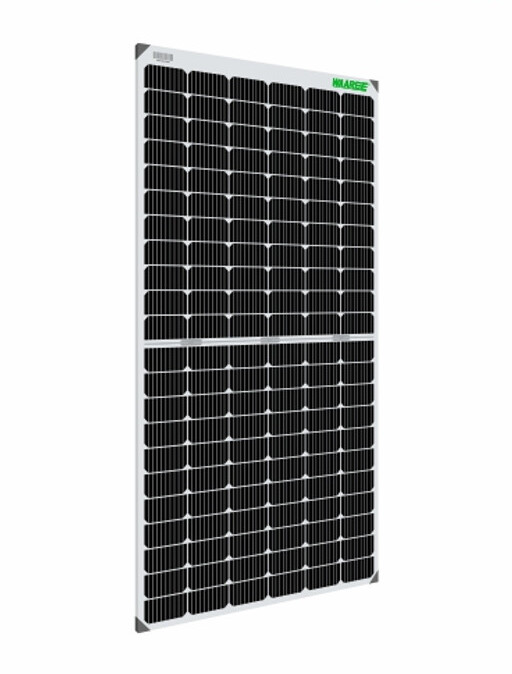

The Waaree 550Wp Dual Glass Mono PERC Bifacial Solar Module is a high-performance, cutting-edge solar panel designed for maximum efficiency and durability. With 144 half-cut cells, it provides exceptional power output, even in low-light conditions, making it ideal for a wide range of solar installations.
Product Features:
 |
Highest Reliability & Enhanced Crack tolerant |  |
Module Utilizing Half Cut cell for Optimum Performance |
 |
Highly Efficient Mono PERC |  |
Highest Commercial Gains, lower LCOE |
 |
Split Junction Box improves Heat Dissipation |  |
Increase Shade Tolerance |
 |
Best-in-Class Thermal Co-efficients |
Mechanical Characteristrics:
| Length x Width x Thickness (L x W x T) |
2272 mm (L) x 1133 mm (W) x 35 mm (T) |
| Solar Cells per Module (Units)/Arrangements | 144 cells / (12x6 || 12x6) |
| Solar Cell Type | Mono PERC, Bifacial, Non-DCR |
| Front Glass | 2.0mm Low Iron Glass |
| Encapsulate | PID Free & UV Resistant |
| Junction Box (Protection degree/Material) | IP68 / Weatherproof PPO |
| Cable & Connector (Protection degree/Type) | IP68 rated / MC4 compatible |
| Cable Cross - Section & Length | 4mm2 & 500mm |
12 Years Product Warranty & 30 Years Power Output Warranty.
